hydraulic fittings from China manufacturer - Yuyao Ruil Pneumatic Component Co.,Ltd.

Payment Terms:	T/T OR L/C AT SIGHT
Place of Origin:	Zhejiang, China (Mainland)

Product Detail

Model No.: 26711D

Packing: plastic hat+small box+carto...

Function: Hydraulic and oil equipment

Export Area: Worldwide

Means of Transport: by sea or road

Brand Name: OEM or EASON

Certificate: ISO9001:2000

Min. Order:1000 pcs;Packing:plastic hat+small box+carton;Transportation:by sea or road;PaymentType:T/T OR L/C AT SIGHT;Trademark:OEM or EASON;Functi

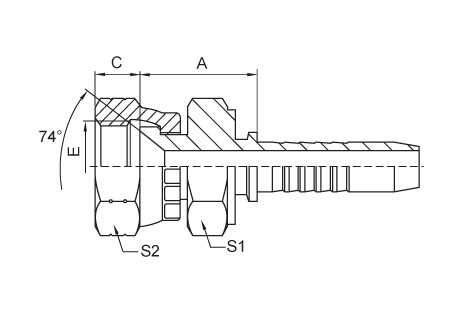

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	S1	S2
26711D-04-04	7/16"X20	6	04	20	9	15	15
26711D-05-04	1/2"X20	6	04	20.5	9.5	17	17
26711D-06-04	9/16"X18	6	04	21	10.5	19	19
26711D-06-06	9/16"X18	10	06	21	10.5	19	19
26711D-08-06	3/4"X16	10	06	25	11	24	24
26711D-08-08	3/4"X16	12	08	24.5	11	24	24
26711D-08-10	3/4"X16	16	10	25.5	11	24	24
26711D-10-08	7/8"X14	12	08	28	13	27	27
26711D-10-10	7/8"X14	16	10	29	13	27	27
26711D-12-12	1.1/16"X12	20	12	31.5	15	32	32
26711D-16-12	1.5/16"X12	20	12	33.5	16	41	41
26711D-16-16	1.5/16"X12	25	16	34.5	16	41	41
26711D-16-20	1.5/16"X12	32	20	36.5	16	41	41
26711D-20-20	1.7/16"X12	32	20	39	17	50	50
Note: 1.For ues with braided hoses. 2.If use with spiral hoses,hose fitting series number is 26712D-XX-XX.
