BSP Swaged Hose Fittings from China manufacturer - Yuyao Ruil Pneumatic Component Co.,Ltd.

Payment Terms:	T/T
Place of Origin:	Zhejiang, China (Mainland)

Product Detail

Model No.: 22611

Packing: Plastic hat+carton+pallet

Brand Name: OEM

Certificate: ISO9001:2000

Means of Transport: By sea or road

Delivery Date: 30days

Function: hydraulic or oil equipment

Export Area: worldwide

Min. Order:1000 pcs;Packing:Plastic hat+carton+pallet;Transportation:By sea or road;DeliveryDate:30days;PaymentType:T/T;Trademark:OEM;Functions:hydra

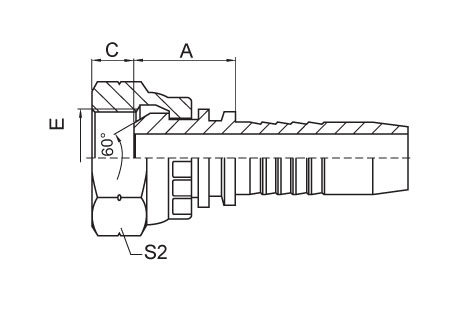

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	S2
22611-02-03	G1/8"X28	5	03	15	5.5	14
22611-02-04	G1/8"X28	6	04	15	5.5	14
22611-04-03	G1/4"X19	5	03	17	5.5	19
22611-04-04	G1/4"X19	6	04	18	5.5	19
22611-04-05	G1/4"X19	8	05	18	5.5	19
22611-04-06	G1/4"X19	10	06	18	5.5	19
22611-06-04	G3/8"X19	6	04	19	6.3	22
22611-06-05	G3/8"X19	8	05	19	6.3	22
22611-06-06	G3/8"X19	10	06	19.5	6.3	22
22611-06-08	G3/8"X19	12	08	19.5	6.3	22
22611-08-08	G1/2"X14	12	08	21.5	7.5	27
22611-10-08	G5/8"X14	12	08	22	9.5	30
22611-10-10	G5/8"X14	16	10	23.5	9.5	30
22611-12-10	G3/4"X14	16	10	24	10.9	32
22611-12-12	G3/4"X14	20	12	24	10.9	32
22611-16-14	G1"X11	22	14	26	11.7	41
22611-16-16	G1"X11	25	16	27	11.7	41
22611-08-06T	G1/2"X14	10	06	21	7.5	27
22611-12-08T	G3/4"X14	12	08	22	10.9	32
22611-16-12T	G1"X11	20	12	24	11.7	41
22611-20-16T	G1.1/4"X11	25	16	27.5	11	50
22611-24-20T	G1.1/4"X11	32	20	32	13	55
22611-32-24T	G2"X11	40	24	30	16	70
22611-20-20W	G1.1/4"X11	32	20	30.5	11	50
22611-24-24W	G1.1/2"X11	40	24	32	13	55
22611-32-32W	G2"X11	50	32	31.9	16	70
Note: 1.For ues with braided hoses. 2.If use with spiral hoses,hose fitting series number is 22612-XX-XX.
