swaged hose fittings from China manufacturer - Yuyao Ruil Pneumatic Component Co.,Ltd.

Payment Terms:	T/T or L/C
Place of Origin:	Zhejiang, China (Mainland)

Product Detail

Model No.: 20211

Packing: carton+pallet

Brand Name: OEM

Function: hydraulic or oil equipment

Means of Transport: by sea or road

Delivery Date: 30 days

Specification: X

Certificate: ISO9001:2000

material: carbon steel,stainless steel
surface finished:colour zinc or white zinc
The name of products
Hydraulic Fittings Hydraulic Hose Fittings

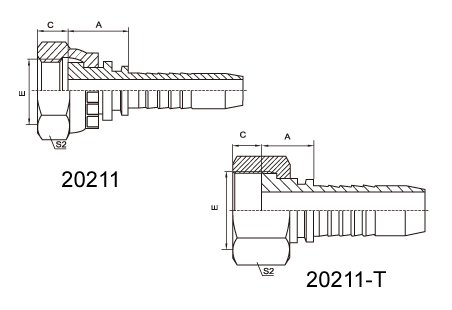

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	S2
20211-10-02	M10X1	4	02	14	6	14
20211-12-03	M12X1.25	5	03	14	8	17
20211-14-04	M14X1.5	6	04	15.5	8.5	19
20211-14-05	M14X1.5	8	05	15.5	8.5	19
20211-16-04	M16X1.5	6	04	16.5	8	22
20211-16-05	M16X1.5	8	05	16.5	8	22
20211-16-06	M16X1.5	10	06	16.5	8	22
20211-18-06	M18X1.5	10	06	17.5	8	24
20211-20-08	M20X1.5	12	08	18.5	10	27
20211-22-08	M22X1.5	12	08	18.5	10	27
20211-22-10	M22X1.5	16	10	19.5	10	27
20211-24-10	M24X1.5	16	10	20.5	10.5	30
20211-30-12	M30X1.5	20	12	21.5	11	36
20211-33-14	M33X2	22	14	21.5	13	41
20211-42-20	M42X2	32	20	26	15	50
20211-18-05T	M18X1.5	8	05	17.5	8	24
20211-20-06T	M20X1.5	10	06	16	10	24
20211-22-06T	M22X1.5	10	06	16	10	27
20211-24-08T	M24X1.5	12	08	16.5	11	30
20211-27-08T	M27X1.5	12	08	18.5	10	32
20211-27-10T	M27X1.5	16	10	19.5	10	32
20211-36-12T	M36X2	20	12	20	13	41
20211-36-14T	M36X2	22	14	20	13	41
20211-39-16T	M39X2	25	16	23.5	13	46
20211-45-20T	M45X2	32	20	25	15	55
20211-52-24T	M52X2	40	24	25	17	60
20211-60-28T	M60X2	45	28	26	20	70
20211-64-32T	M64X2	50	32	26	23	75
Note: 1.For ues with braided hoses. 2.If use with spiral hoses,hose fitting series number is 20212-XX-XX.
